Medical Devices - Cancer Treatment Proton Gun Design
Solfins doo, Mladen Bogićević
| Še nobenega komentarja

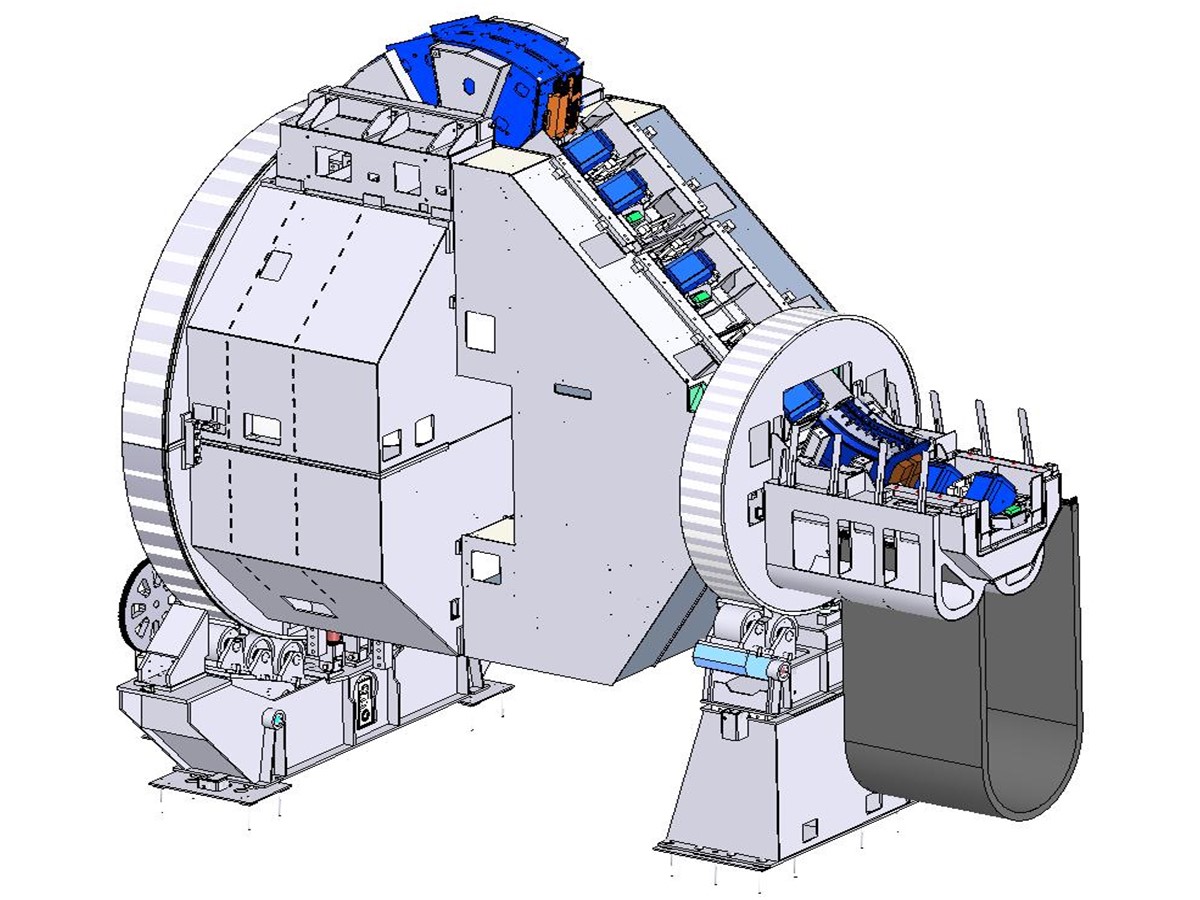

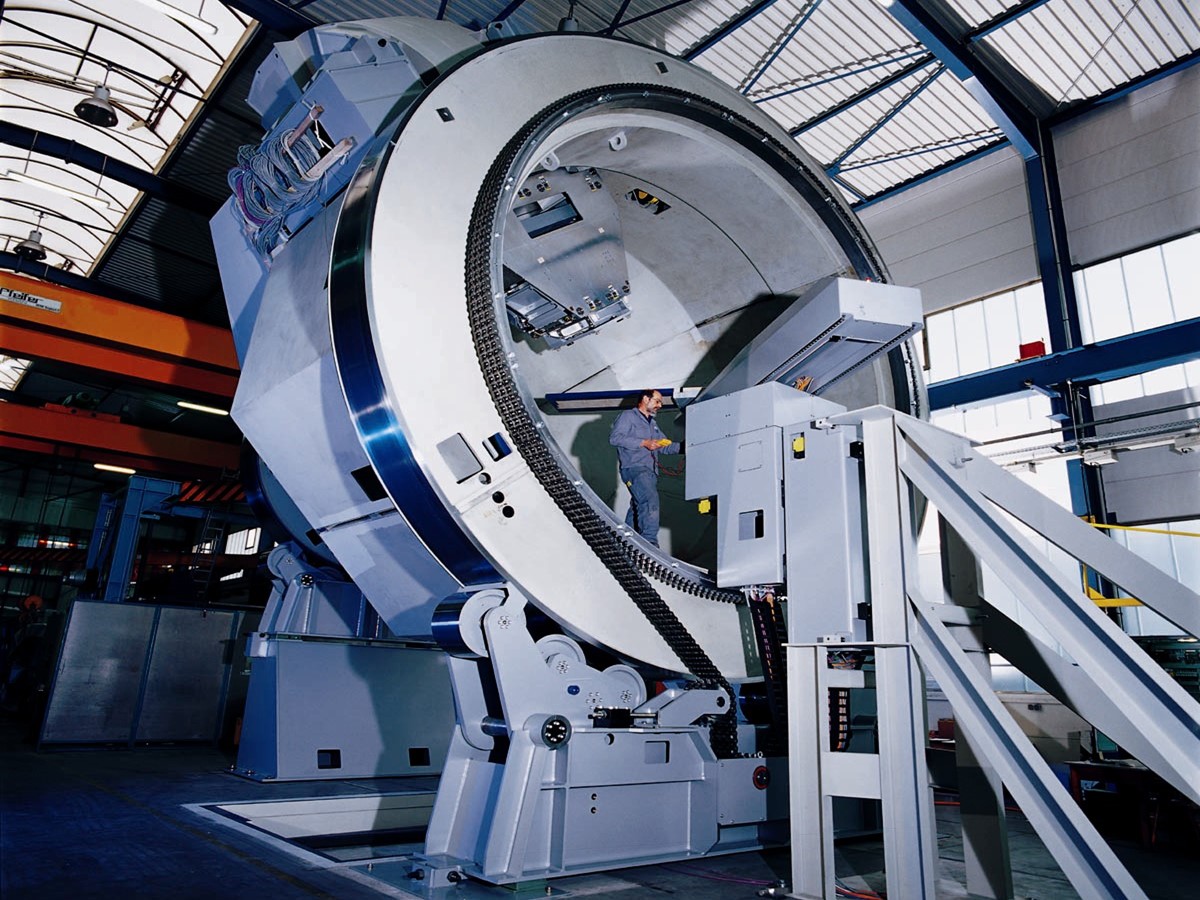

Gantry cancer treatment proton gun design.

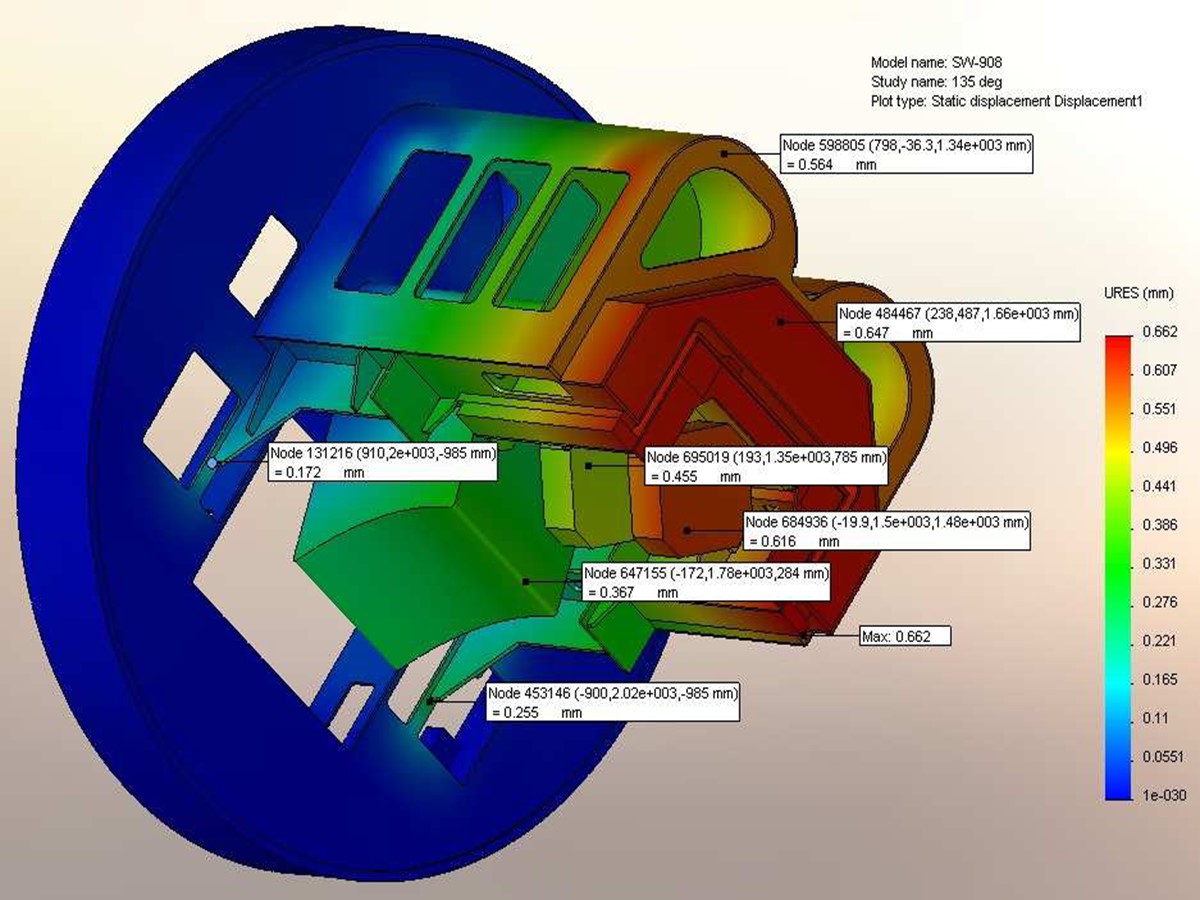

Structural analysis and optimization of welded structure.

Reduced deformations from 0.707 mm to 0.132 mm.

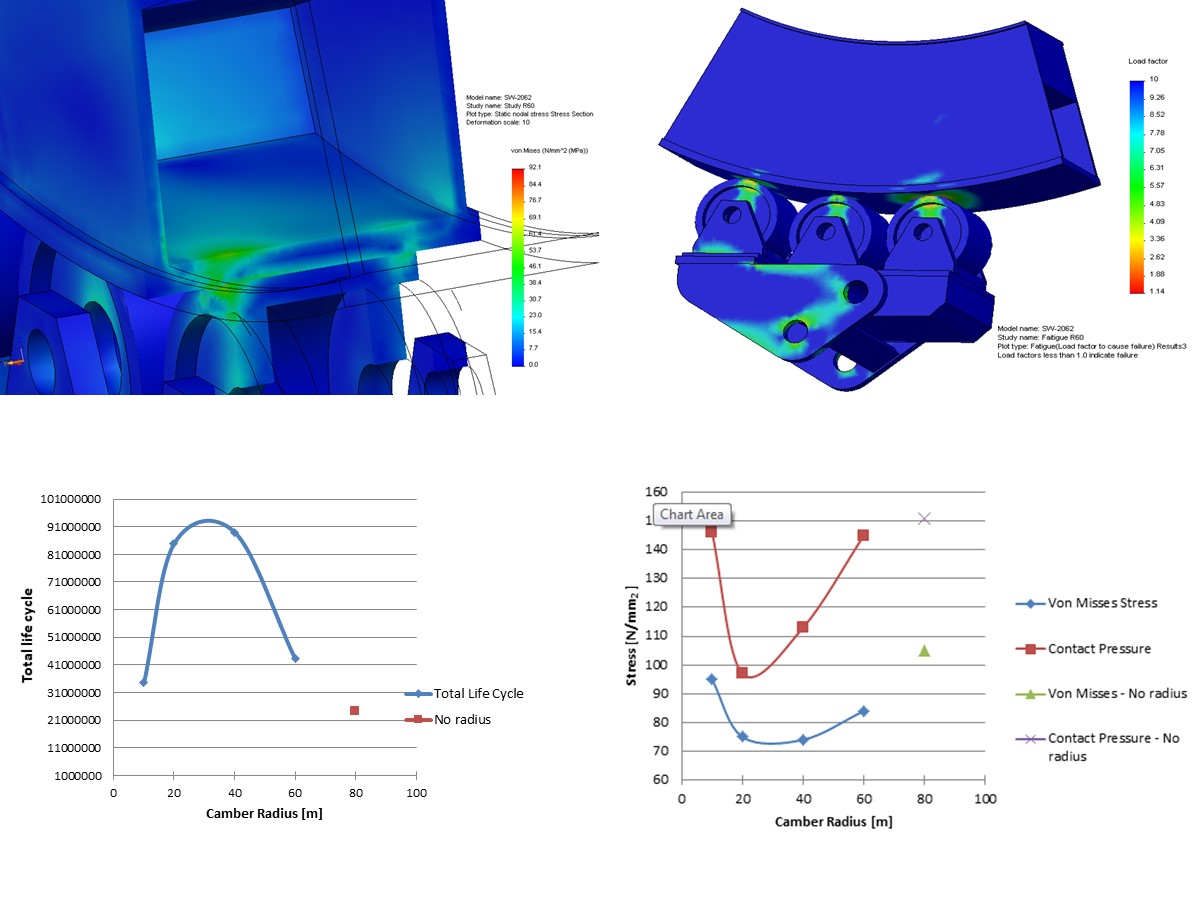

Fatigue analysis of roller supports and optimization of roller radius (camber radius).
